[CI/CD with AWS] - Deploy Server

1. 💡 AWS 환경이 아닐경우 & AWS 환경일 경우



• AWS 환경이 아닐 경우
  • jdk11.tar.gz 다운
  • tar xvfz openjdk-11+28_linux-x64_bin.tar.gz
  • vi /etc/profile (환경변수 잡아주기)
  • source /etc/profile










      <java />

# java
exportJAVA_HOME=/JAVA 설치경로/jdk-11
export PATH=$PATH:$JAVA_HOME/bin
export CLASSPATH=.:$JAVA_HOME/lib/tools.jar

• AWS CLI 환경일 경우
  • curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
  • unzip awscliv2.zip
  • sudo ./aws/install

---

2. 💡 AWS



2.1. IAM Role 생성



• AmazonS3FullAccess
• AmazonEC2RoleforAWSCodeDeploy
• AWSCodeDeployRole
• AmazonSSMFullAccess
• AmazonEC2FullAccess

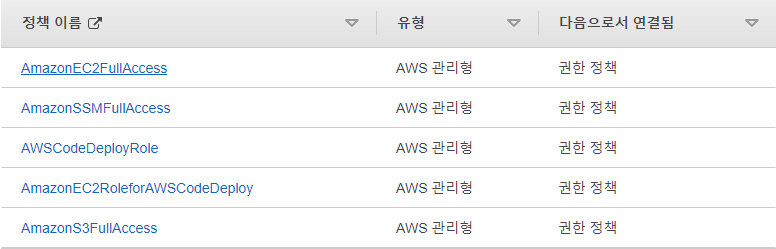

추가한 정책 목록

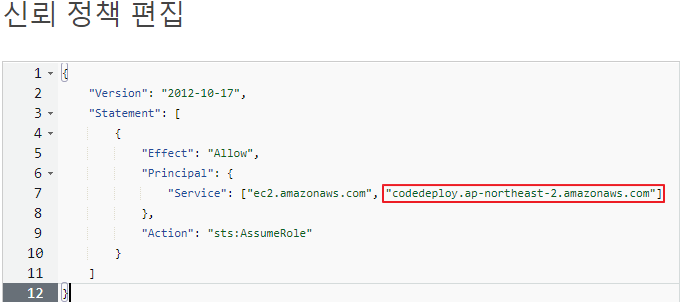

신뢰정책에 내 리전의 codedeploy 서비스 추가

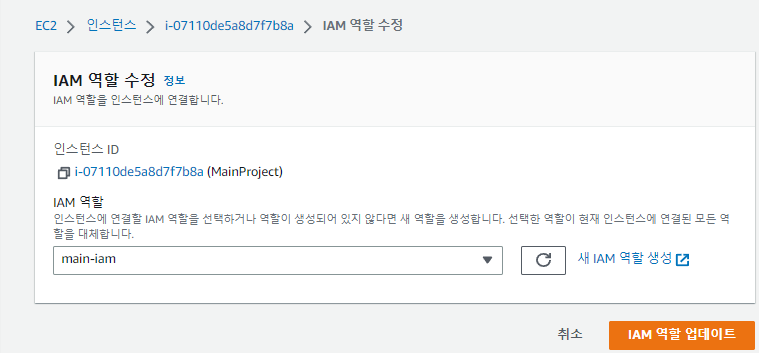

EC2에 IAM Role 연결

---

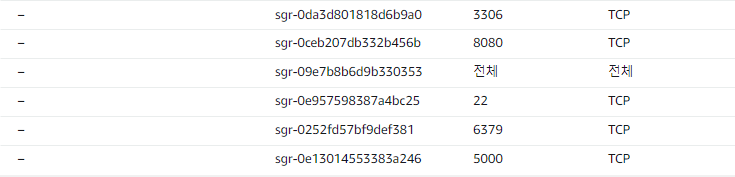

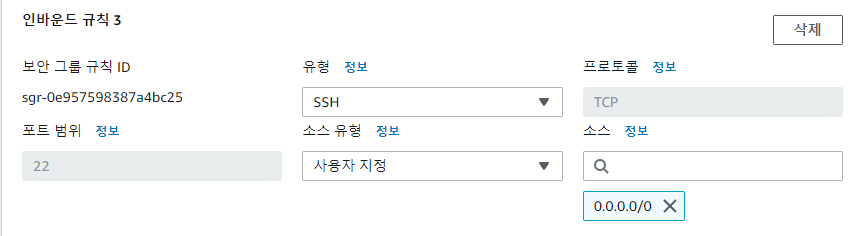

2.2. 보안그룹 포트 오픈



• 3306 - DB Connection Endpoint
• 8080 - Spring Boot Endpoint
• 22 - SSH Endpoint
• 6379 - RDS Endpoint
• 5000 - Docker Private Registry Endpoint

---

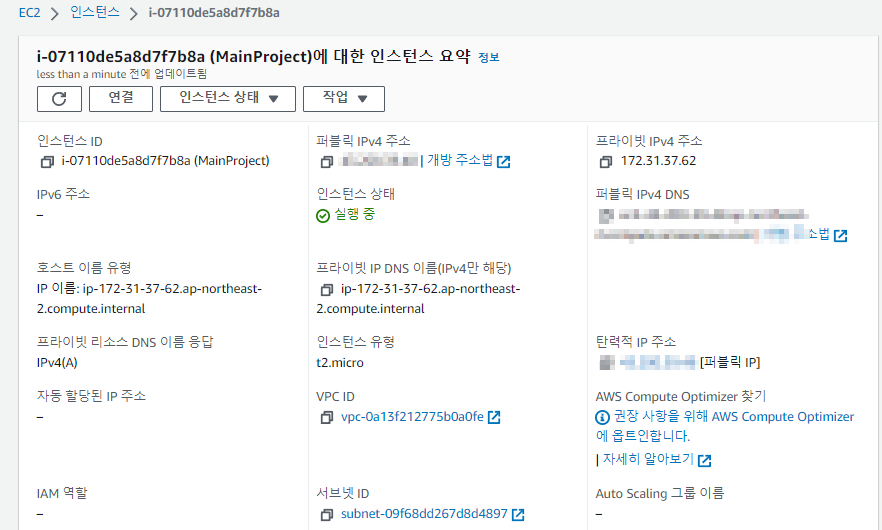

2.3. EC2 인스턴스 생성 (Elastic IP 설정)



---

2.4. EC2 내부 패키지 설치

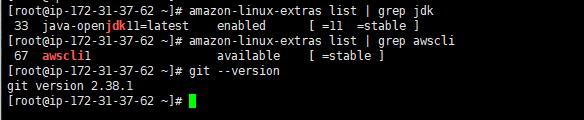

2.4.1. JDK 설치

• amazon-linux-extra install -y openjdk11



2.4.2. GIT 설치

• yum -y install git



2.4.3. AWS CLI 설치

• curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
• unzip awscliv2.zip
• sudo ./aws/install



2.4.4. CodeDeploy Agent 설치

• yum -y update
• yum -y install gcc (C Compiler)
• gpg2 --recv-keys 409B6B1796C275462A1703113804BB82D39DC0E3 7D2BAF1CF37B13E2069D6956105BD0E739499BDB
• curl -sSL https://rvm.io/pkuczynski.asc | gpg2 --import -   -> import gpg key
• curl -sSL https://get.rvm.io | bash -s stable  (rvm 설치 스크립트)
• source /etc/profile.d/rvm.sh  (시스템 환경변수 & rvm 정보 업데이트)
• rvm reload
• rvm requirements run  (rvm 의존성 패키지 설치)
• rvm list known
• rvm install [version] (2.7)
• rvm list
• rvm use [version] --default
• ruby -v
• gem install aws-sdk  (Ruby용 sdk 설치)
• wget https://aws-codedeploy-ap-northeast-2.s3.ap-northeast-2.amazonaws.com/latest/install
• chmod +x install
• ./install auto > /tmp/logfile
• service codedeploy-agent status

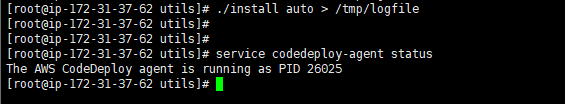

Code Deploy Agent 설치



2.4.5. Docker & Docker Compose 설치

• yum -y install docker

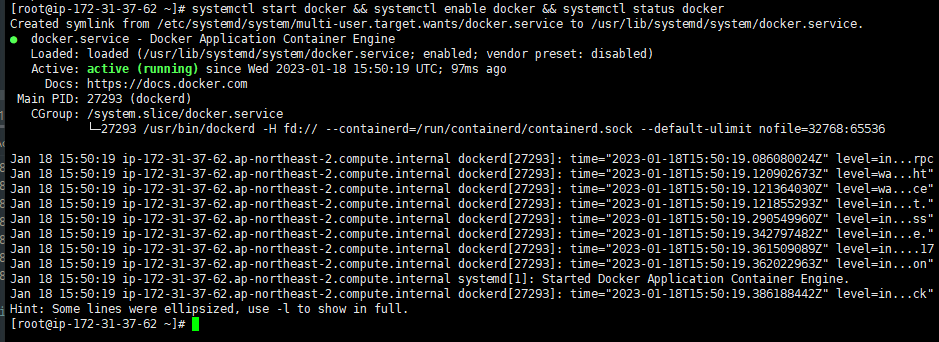

• systemctl start docker && systemctl enable docker && systemctl status docker
• usermod -aG docker ec2-user

Docker 설치

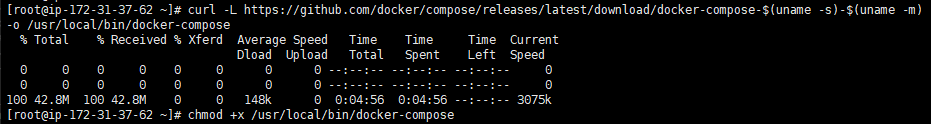

• curl -L https://github.com/docker/compose/releases/latest/download/docker-compose-$(uname -s)-$(uname -m) -o /usr/local/bin/docker-compose
• chmod +x /usr/local/bin/docker-compose
• docker-compose up -d --build (Dockerfile이 작성된 상태인 경우)

Docker-compose 설치



2.4.6. DB 컨테이너 생성

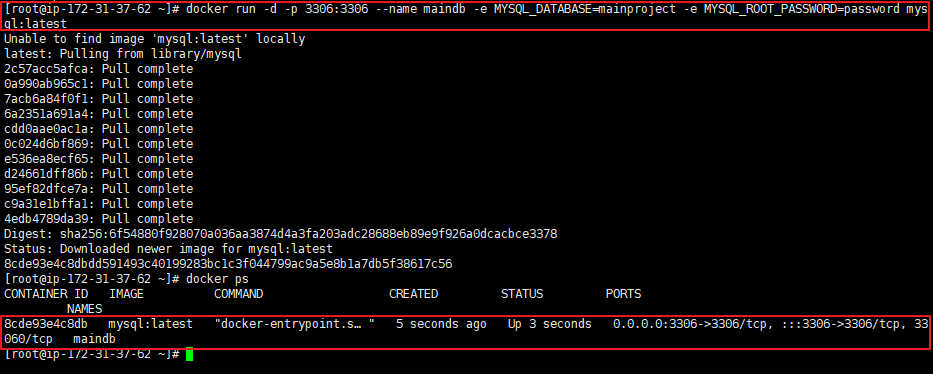

• docker run -d -p 3306:3306 --name maindb -e MYSQL_DATABASE=mainproject -e MYSQL_ROOT_PASSWORD=password mysql:latest
• docker ps



2.4.7. Dockerfile 작성 (로컬환경)

• Dockerfile 작성
• docker build --tag={dockerhub-accounts}/main:1.0.0 --force-rm=true .
• docker push {dockerhub-accounts}/main:1.0.0-beta  (Docker Hub에 Push)

Dockerfile

• AWS 환경으로 돌아와서
• docker pull {dockerhub-accounts}/main:1.0.0-beta
• docker run -d -p 8080:8080 -t {dockerhub-accounts}/main:1.0.0-beta

---

2.5. AWS CodeDeploy & CodePipeline 설정



2.6. CodeDeploy

인스턴스 내에 CodeDeploy-Agent 설치가 되어있어야함



• 어플리케이션 - 생성 - 배포그룹 생성
• IAM & Instance Tag 지정, LoadBalancer 비활성화



2.7. CodePipeline

• 파이프라인 생성 - 소스공급자(Github version 2)
• Github 연결

---

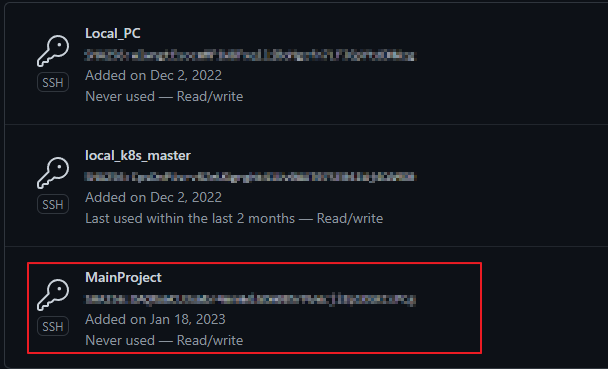

3. 💡 Github SSH Key 등록



---

4. 💡 appspec.yml & buildspec.yml 작성












      <bash />

# appspec.yml

version: 0.0
os: linux

files:
  - source: /
    destination: /root/build

hooks:
  BeforeInstall:
    - location: server_clear.sh
      timeout: 3000
      runas: root
  AfterInstall:
    - location: initialize.sh
      timeout: 3000
      runas: 3000
  ApplicationStart:
    - location: server_start.sh
      timeout: 3000
      runas: root
  ApplicationStop:
    - location: server_stop.sh
      timeout: 3000
      runas: root












      <bash />

# buildspec.yml

version: 0.2

phases:
  install:
    runtime-versions:
      java: corretto11
  build:
    commands:
      - echo Build Starting on `date`
      - cd server
      - chmod +x ./gradlew
      - ./gradlew build
  post_build:
    commands:
      - echo $(basename ./server/build/libs/*.jar)
artifacts:
  files:
    - server/build/libs/*.jar
    - server/scripts/**
    - server/appspec.yml
  discard-paths: yes












      <bash />

#!/usr/bin/env bash
chmod +x /home/ubuntu/build/**

#!/usr/bin/env bash
rm -rf /home/ubuntu/build

#!/usr/bin/env bash
cd /home/ubuntu/build
sudo nohup java -jar DeployServer-0.0.1-SNAPSHOT.jar > /dev/null 2> /dev/null < /dev/null &

#!/usr/bin/env bash
sudo pkill -f 'java -jar'



script

---

5. 💡 git clone or sftp를 이용한 서버 배포 & 실행



./gradlew :base-api:clean :base-api:bootJar

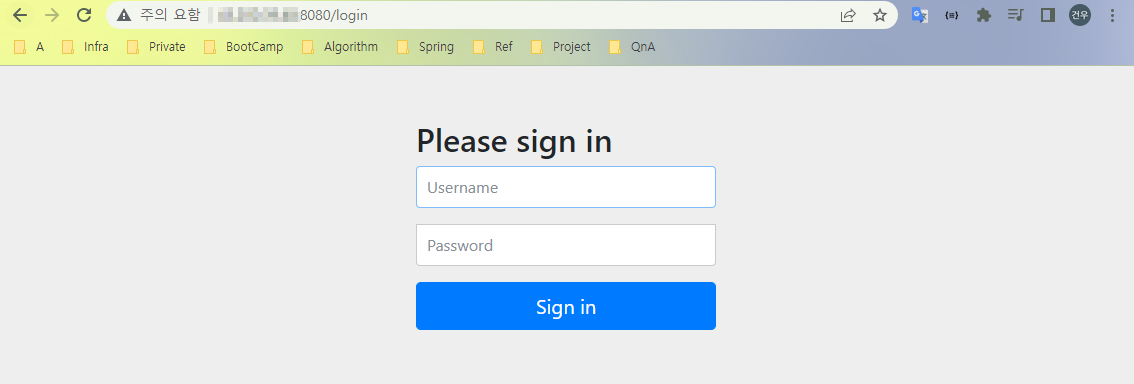

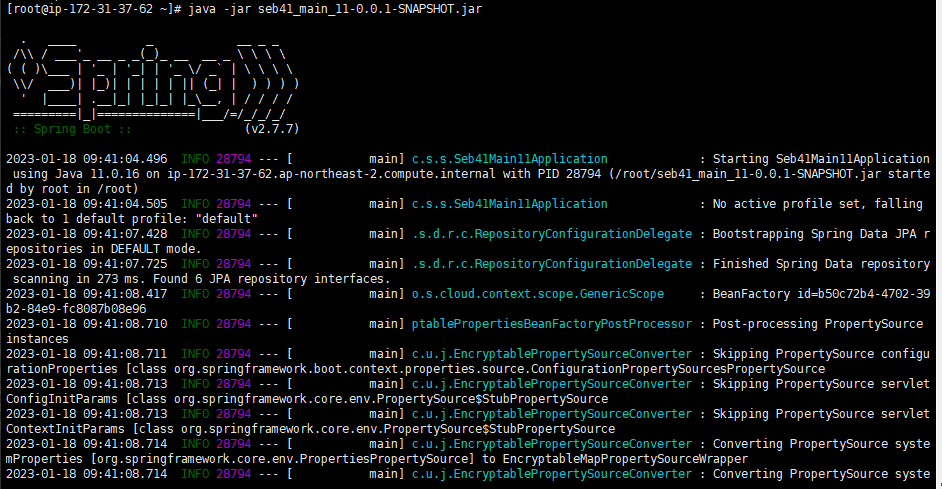

서버 실행

---

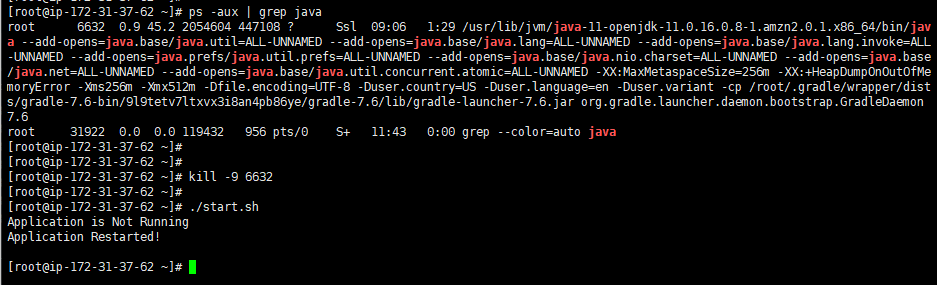

6. 💡 서버 실행 Shell Script 작성












      <bash />

#!/bin/bash

# EC2 내 Spring Boot 실행 스크립트

# 서버가 실행중이면 프로세스 종료
ps -ef | grep "main_11-0.0.1-SNAPSHOT.jar" | grep -v grep | awk '{print $2}' | xargs kill -9 2> /dev/null

# 종료 이력 파악 후 적절한 문구 출력
if [ $? -eq 0 ];then
    echo "Successfully Stopped"
else
    echo "Application is Not Running"
fi

# 어플리케이션 재 실행
echo "Application Restarted!"
echo $1

# 어플리케이션 백그라운드 실행
nohup java -jar /root/main/server/build/libs/main_11-0.0.1-SNAPSHOT.jar > /dev/null 2>&1 &

---

7. 💡 수동 실행 -> 스크립트를 이용한 자동 서버 실행 (Optional)
