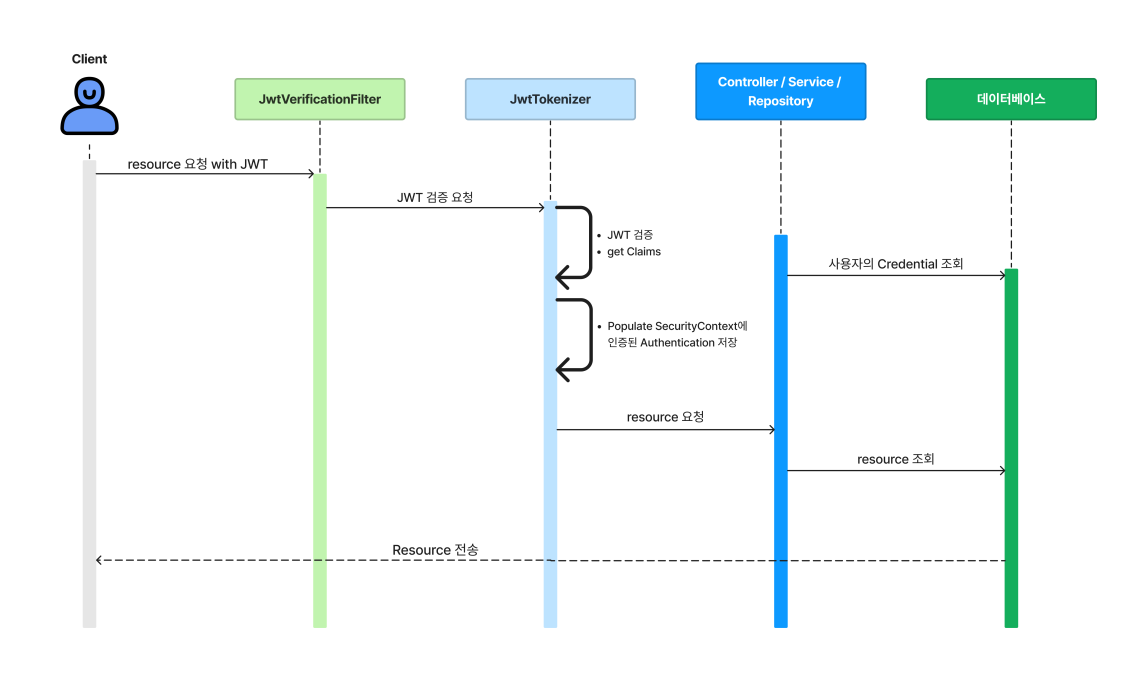

💡 Processing Flow
💡 구현
사전 작업
UserDto의 Post 내부클래스에 password 필드 추가
Entity 클래스에 password 필드, 권한테이블 생성 로직 추가
SecurityConfiguration : Spring Security를 이용한 보안 강화를 위한 보안 구성
- Annotation
- @Configuration
- implementation, extends
- None
- Dependency Injection
- JwtTokenizer
- Method
- @Bean public SecurityFilterChain -> 보안 설정
- param = HttpSecurity
- throws = Exception
- 로그인 방식, csrf공격 방지 등 보안 옵션 설정
- return http.build()
- @Bean public PasswordEncoder -> PasswordEncoder 빈 생성
- param = None
- throws = None
- return PasswordEncoderFactories.createDelegatingPasswordEncoder()
- @Bean CorsConfigurationSource -> 디테일한 CORS 정책 설정
- param = None
- throws = None
- 1. Origin 통신 허용
- 2. 지정한 HTTP Method 허용
- UrlBasedCorsConfigurationSource 객체를 이용한 URL 접근제어
- return UrlBasedCorsConfigurationSource 객체
- public Class CustomFilterConfigurer -> CustomFilter 적용
- param = None
- throws = None
- extends = AbstractHttpConfigurer<customfilterconfigurer, httpsecurity>
- Overrided Method public void name
- param = HttpSecurity
- throws = Exception
- CustomHandlerFilter 적용 기능 구현
- Overrided Method public void name
- @Bean public SecurityFilterChain -> 보안 설정
UserService
유저 등록 시 id, pw, authority 저장
- Annotation
- @Transactional, @Service
- implementation, extends
- None
- Dependency Injection
- Repo, ApplicationEventPublisher, PasswordEncoder, CustomAuthorityUtils
- Method
- createUser
- param = User
- throws = None
- verify Mail
- PasswordEncoder를 이용한 User PW 암호화
- CustomAuthorityUtils를 이용한 User Role 생성
- DB에 User 저장
- return ApplicationEventPublisher의 구현체인 MemberRegistrationApplicationEvent 객체로
저장된 User 정보를 감싸고 저장된 User 리턴
- createUser
PrivateDetailsService
DB에서 조회한 User의 Credential을 AuthenticationManager에게 전달하는 클래스
- Annotation
- @Component
- implementation, extends
- implements UserDetailsService
- Dependency Injection
- Repo, CustomAuthorityUtils
- Method
- Overrided public UserDetails loadUserByUsername
- param = String username
- throws = UsernameNotFoundException
- fingByEmail -> Optional User(username) + exception 반환
- return 위에서 얻은 optionalUser를 내부 클래스의 생성자로 반환
- 내부 클래스 private final class privateDetails
- param = None
- throws = None
- extends(entity), imp(UserDetails)
- Contructor(Entity entity) -> set User Info
- Overrided methods -> grant Athority, imp UserDetails's Methods
- Overrided public UserDetails loadUserByUsername
JwtTokens
User의 로그인 성공 시, JWT 생성 & 발급 & 검증
- Annotation
- @Component, (field) @Getter, @Value (mapping with .yml field)
- Member
- key, (set expirer time for access & refresh tokens)
- implementation, extends
- None
- Dependency Injection
- None
- Method
- public String [평문 -> encoding 로직]
- param = String keyname
- throws = None
- return Encoders.BASE64.Encode(keyname.getBytes(StandardCharsets.UTF-8)
- public String [인증이 완료된 사용자에게 Access Token 발급 로직]
- param = Map<String, Object> , String sub, Date ex, String encodedKey
- 위의 Encoding 로직을 이용한 암호화된 암호 -> 키 변환 생성
- return Jwts.builder + param 값 설정
- param = Map<String, Object> , String sub, Date ex, String encodedKey
- public String [Access Token 만료시 발급 할 Refresh Token 생성 로직]
- param = String sub, Date ex, String encodedKey
- 위의 Encoding 로직을 이용한 암호화된 암호 -> 키 변환 생성
- return Jwts.builder + param 값 설정
- private Key [JWT 서명에 사용할 비밀 키 생성 로직]
- param = String encodedKey
- Decoders를 이용한 encodedKey 디코딩 - 반환타입 : byte Array
- Key = Keys.hmacShaKeyFor(위에서 반환된 byte Array]
- return 키
- public void [JWT 검증 로직]
- param = String jws, String encodedKey
- 위의 Encoding 로직을 이용한 암호화된 암호 -> 키 변환 생성
- return Jwts.parseBuilder() + 키를 이용한 sign + jws 리턴
- public String [평문 -> encoding 로직]
PrivateJwtAuthenticationFilter
유저의 로그인 정보를 직접 수신 + 인증 처리의 Entrypoint 역할을 하는 필터
- Annotation
- (Method) @SneakyTrows, @Override
- implementation, extends
- extends = UsernamePasswordAuthenticationFilter
- Dependency Injection
- AuthenticationManager, JwtTokenizer
- Method
- public Authentication [인증 시도 로직]
- param = HttpServletRequest, HttpServletResponse
- throws = None
- 받은 User의 로그인 정보를 DTO로 역직렬화 하기 위한 ObjectMapper 객체 생성
- Dto = objectMapper.readValue(request.getInputStream(), Dto.class) 로 DTO 역직렬화
- Dto의 정보로 UsernamePasswordAuthenticationToken를 이용한 객체 생성
- return AuthenticationManager의 메소드인 authenticate를 이용하여 인증 처리 위임
- Overrided protected void [인증 성공 시 반환할 토큰 생성 로직]
- param = HttpServletRequest & Response, FilterChain, Authentication
- throws = None
- Authentication의 기능인 getPrincipal()로 Entity 객체를 얻음
- 위에서 얻은 Entity를 파라미터로, 밑에 작성할 [토큰 생성 로직]을 이용한 토큰 생성
- response Header에 토큰 정보를 set
- private String [Access Token 생성 로직]
- param = Entity
- throws = None
- filed = Map,sub,ex,encodedKey -> 파라미터로 받은 Entity의 필드를 이용해 값을 채움
- 토큰 생성 = 위에서 주입받은 Jwt생성 클래스의 토큰 생성 로직을 이용해 토큰 생성
- return AccessToken
- private String [Refresh Token 생성 로직]
- param = Entity
- throws = None
- filed = sub,ex,encodedKey -> 파라미터로 받은 Entity의 필드를 이용해 값을 채움
- 토큰 생성 = 위에서 주입받은 Jwt생성 클래스의 토큰 생성 로직을 이용해 토큰 생성
- return Refresh Token
- public Authentication [인증 시도 로직]
인증 성공 & 실패 시 Exception을 던지는 등, 추가 작업을 수행할 AuthenticationHandler 2개 생성
- Annotation
- @Slf4j
- implementation, extends
- AuthenticationSuccessHandler, AuthenticationFailureHandler
- Dependency Injection
- None
- Method
- Overrided public void onAuthenticationSuccess & Failure
- param = HttpServletRequest & Response,(success) Authentication / (fail) AuthenticationException
- throws = IOException
- (성공 시) log.info(" Message ")
- (실패 시) log.error(" Message ", AuthenticationException의 기능인 getMessage())
- (fail) return sendErrorResponse(response)
- (실패 시) private void [실패 시 던질 ErrorResponse]
- param = HttpServletResponse
- throws = IOExeption
- Gson 객체 생성
- ErrorResponse의 상태 호출
- response에 적절한 에러 응답 set (error, Error.class)
- Overrided public void onAuthenticationSuccess & Failure
